Hollow Thin Walled Rectangle - Geometric Properties
| Geometric Property Calculator | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
The above hollow thin walled rectangle property calculator is based on the provided equations and does not account for all mathematical limitations. The calculator has been provided with educational purposes in mind and should be used accordingly. Unit conversion
Need an
spreadsheet for designing the above shape, click here!
Notation and Units
Metric and Imperial Units
The above formulas may be used with both imperial and metric units. As with all calculations care must be taken to keep consistent units throughout. Examples of units which are typically adopted are outlined below:
Notation
- A = Geometric Area, in2 or mm2
- C = Distance to Centroid, in or mm
- I = Second moment of area, in4 or mm4
- Ji = Polar Moment of Inertia, in4 or mm4
- J = Torsional Constant, in4 or mm4
- K = Radius of Gyration, in or mm
- P = Perimeter of shape, in or mm
- S = Plastic Section Modulus, in3 or mm3
- Z = Elastic Section Modulus, in3 or mm3

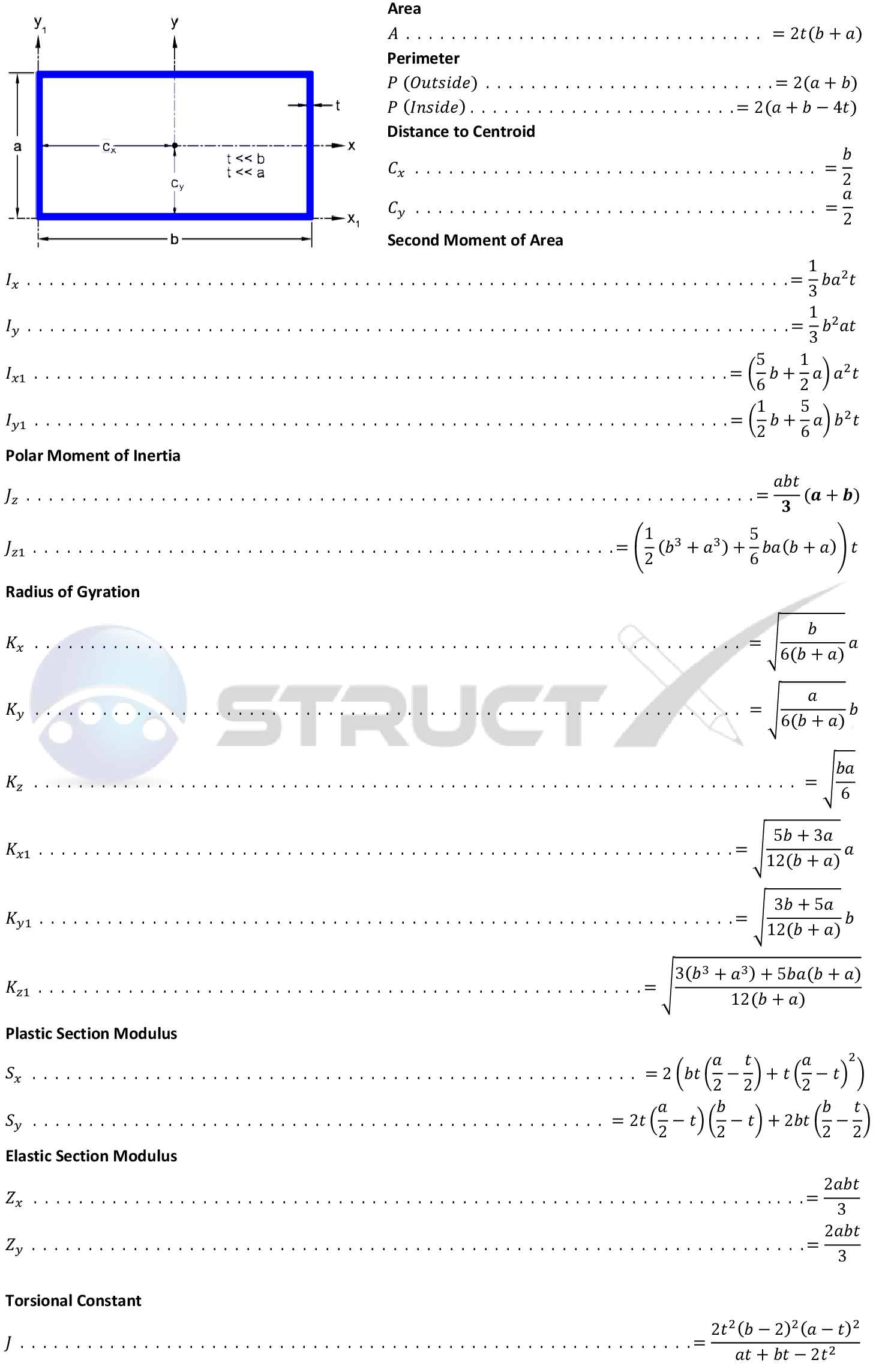

Online Hollow Thin Walled Rectangle Property Calculator
Using the structural engineering calculator located at the top of the page (simply click on the the "show/hide calculator" button) the following properties can be calculated:
- Area of a Hollow Thin Walled Rectangle
- Perimeter of a Hollow Thin Walled Rectangle
- Centroid of a Hollow Thin Walled Rectangle
- Second Moment of Area (or moment of inertia) of a Hollow Thin Walled Rectangle
- Polar Moment of Inertia of a Hollow Thin Walled Rectangle
- Radius of Gyration of a Hollow Thin Walled Rectangle
- Elastic Section Modulus of a Hollow Thin Walled Rectangle
- Plastic Section Modulus of a Hollow Thin Walled Rectangle
